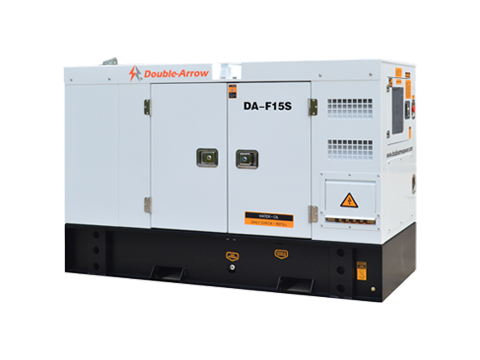

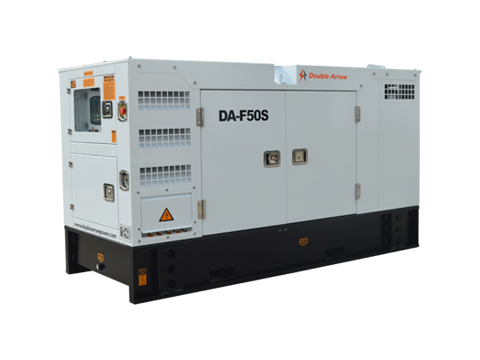

DOUBLE-ARROW DA-F series gensets are powered by FAWDE diesel engine and power range from 13.5KVA to 413KVA.


Located in Wuxi, Jiangsu Province, FAW Jiefang Automotive Co., Ltd. Wuxi Diesel Engine Works (hereinafter referred to as " FAWDE ") is an exclusively-invested enterprise subordinated to China FAW Group Corporation. Established in 1943, and after seven decades of development, the factory now covers an area of 670,000 square meters, with over 3,500 employees, total assets of RMB6.35 billion, and brand intangible assets of RMB10.229 billion. Presently, it possesses four plant areas, including two large engine bases, one engine remanufacturing base, and one modified vehicle research base, and has formed a production system with world-leading equipment, domestic leading management and industry leading quality, with an annual production capacity of 600,000 diesel engines and 15,000 modified vehicles.





  • Powered by FAWDE brand diesel engine,it’s best and most famous China engine,featured with high stability,reliability, durability and long life with a wide range of power output.

  • The canopy is made of 2mm cold rolled steel plate and high quality painted,the paint is highly endurable against erosion and scratch,strongly,rustproof.

  • Adopt stainless steel door hinge and high quality door lock.

  • Enlarge the area of air intake and discharge, and give up traditional bottom air intake design,which can avoid dusts and other impurities being,inhalated into the inside of canopy.

  • Anti-vibration device,effectively reduce vibration and prevent distortion or harmonics output of the generator sets.



Anti-vibration device.JPG

Anti-vibration device



Power outlet.JPG

Power outlet

Quality lock改为Stainless steel lock.jpg

Stainless steel lock

Rainproof cap.JPG

Rainproof cap


  • Design,production and test of genset is compliance with CE safety standard

  • Equipped with circuit breaker when engine stops in emergency for avoiding possible electric shock risk when re-start.

  • Equipped with emergency stop button,can stop the genset immediately when emergent problem happens.

  • The controller has a historical operation recording for troubleshooting and inspection.

Circuit breaker.JPG

Circuit breaker

Control panel-256.JPG

Control panel

Emergency stop.JPG

Emergency stop

Easy to operate

  • Smartgen brand HGM6120N controller,automatical control and protection.

  • Connected with the mains through ATS,which can automatically transfer between mains and genset.Meanwhile,multiple gensets can be paralleled for bigger power needs.

  • The soundproof genset includes base fuel tank for 8 hours running.

  • Fuel inlet,fuel drain outlet and design a coolant filling hole on the top of soundproof canopy for filling coolant conveniently.

  • The forklift holes and lifting eyes located on bottom of canopy,make the genset easier to move by forklift or crane.

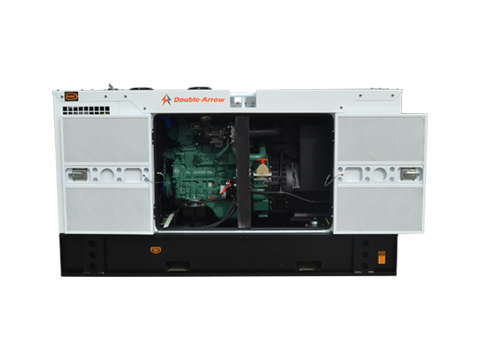

  • The daily maintenance work can be performed on both sides of the genset,and the wide doors allow access to all areas of the genset.

ATS communication port.JPG

ATS communication port

Control panel.JPG

Control panel

Forklift hole.JPG

Forklift hole

Coolant filling hole.JPG

Coolant filling hole

Fuel drain outlet.JPG

Fuel drain outlet

Fuel inlet.JPG

Fuel inlet

Lifting eye.JPG

Lifting eye

Maintenance door.JPG

Maintenance door

Environmentally friendly

The noise level can be reduced by 15-35 dB(A) through noise control design,which ensure quiet operations,so having no effect on daily activities.This feature makes our diesel generators ideal for use at night in residential areas,offices and other environments which are to noise.





Battery charger.JPG

Battery charger

Electric engine heater (4KW).JPG

Electric engine heater (4KW)

Fuel level sensor.JPG

Fuel level sensor

Electric engine heater (2.2KW).JPG

Electric engine heater (2.2KW)

Fuel-water separator.JPG

Fuel-water separator

ModelPrime   PowerStandby   PowerDiesel   EngineDimension(mm)Datasheet
kVAkWkVAkWBrandModelSilent   type
Single   phase
DA-F15S1S15121713.2FAWDE4DW81-23D2000*800*1150Download   PDF
DA-F17S1S1713.61915.24DW91-29D2000*800*1150Download   PDF
DA-F20S1S20162217.64DW92-35D2000*800*1150Download   PDF
Three   phase
DA-F14S13.5111512FAWDE4DW81-23D2000*850*1150Download   PDF
DA-F15S151216.5134DW81-23D2000*850*1150Download   PDF
DA-F20S20162217.64DW91-29D2000*850*1150Download   PDF
DA-F25S252027.5224DW92-35D2000*850*1150Download   PDF
DA-F30S302433264DW92-39D2000*850*1150Download   PDF
DA-F38S383041334DX21-53D2280*900*1250Download   PDF
DA-F50S504055444DX22-65D2280*900*1250Download   PDF
DA-F63S635069554DX23-78D2280*900*1250Download   PDF
DA-F88S887096774DF2-12D3000*1050*1650Download   PDF
DA-F100S10080110886DF2D-14D3000*1050*1650Download   PDF
DA-F125S1251001381106DF2-17D3000*1050*1650Download   PDF
DA-F150S1501201651326DF2-19D3600*1200*2050Download   PDF
DA-F188S1881502061656DL1-24D4200*1400*2000Download   PDF
DA-F225S2251802481986DL2-27D4200*1400*2000Download   PDF
DA-F250S2502002752206DL2-304200*1400*2000Download   PDF
DA-F300S3002403302646DM2J-39D4200*1400*2000Download   PDF
DA-F375S3753004133306DN1J-45D4200*1400*2000Download   PDF

ModelPrime   PowerStandby   PowerDiesel   EngineDimension(mm)Datasheet
kVAkWkVAkWBrandModelSilent   type
DA-F19-6019152117FAWDE4DW81-28D2000*850*1150Download   PDF
DA-F28-60282230244DW91-38D2000*850*1150Download   PDF
DA-F31-60312534284DW92-42D2000*850*1150Download   PDF
DA-F38-60383041334DX21-53D2280*900*1250Download   PDF
DA-F44-60443548394DX22-60D2280*900*1250Download   PDF
DA-F60-60604866534DX23-82D2280*900*1250Download   PDF
DA-F78-6078628568CA4110/125Z-11D3000*1050*1650Download   PDF
DA-F100-6010080110884DF2-14D3000*1050*1650Download   PDF
DA-F119-60119951311056DF2D-16D3000*1050*1650Download   PDF
DA-F138-601381101511216DF2-18D3000*1050*1650Download   PDF
DA-F163-601631301791436DF2-21D3600*1200*2050Download   PDF
DA-F206-602061652271826DL1-27D4200*1400*2000Download   PDF
DA-F250-602502002752206DL2-32D4200*1400*2000Download   PDF
DA-F338-603382703712976DM2J-42D4200*1400*2000Download   PDF
DA-F375-603753004133306DN1J-46D4200*1400*2000Download   PDF
