DA-YNG SERIES YUCHAI 50-2000KW

‹

DA-YNG SERIES YUCHAI 50-2000KW

›

‹

›

DOUBLE-ARROW DA-YNG series gas generator sets are selecting excellent YUCHAI gas engine which covers wide genset power range from 50KW to 2000KW.

Guangxi Yuchai Marine and Genset Power Co ., Ltd . is a wholly - owned subsidiary of Guangxi Yuchai Machinery Co ., Ltd . The company , headquartered in Yulin , Guangxi , is committed to R & D , production , sales , and customer service of marine engines , G - Drive engines as well as others . Its products , sold to markets worldwide including Asia , Africa , Latin America , the United States , and Europe as well as the domestic market , are widely used in marine and engineering equipment , power generation , oil drilling as well as other fields . the products have won high praise from new and old customers . The annual production capacity of the engine exceeds 50,000 units . The annual sales revenue exceeds RMB 5 billion.
CONTACT US
50HZ
Features
FAQ

DA-YNG Series -- Powered by YUCHAI Engine 丨 Three-phase 50Hz


Genset ModelContinuous PowerYUCHAIDatasheet
KWEngine model
DA-Y50NG50YC4D90N-D30PDF
DA-Y80NG80YC4G135N-D30PDF
DA-Y120NG120YC6G205N-D30PDF
DA-Y180NG180YC6MK315N-D30PDF
DA-Y250NG250YC6K420N-D30PDF
DA-Y450NG450YC6TF800N-D30PDF
DA-Y500NG500YC6C935N-D30PDF
DA-Y800NG800YC12VTD1350N-D30PDF
DA-Y1000NG1000YC12VC1680N-D31PDF
DA-Y1100NG1100YC16VTD1830N-D30PDF
DA-Y1500NG1500YC16VC2470N-D30PDF
DA-Y2000NG2000YC16VC3300N-D30PDF

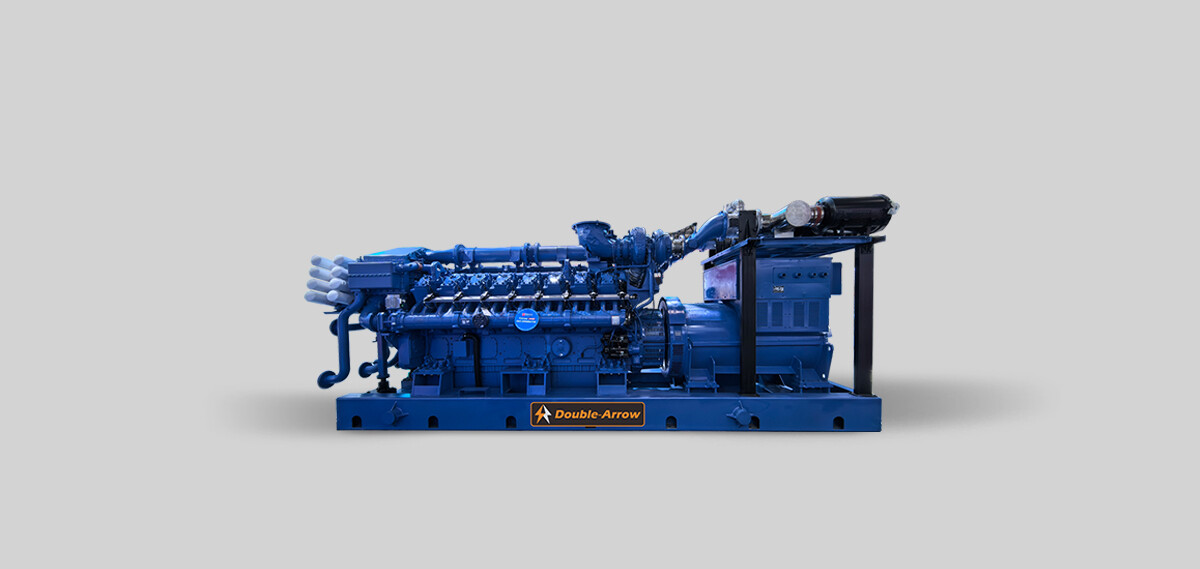

1-海报

DA-YNG SERIES YUCHAI 50-2000KW

DOUBLE-ARROW DA-YNG series gas generator sets are selecting excellent YUCHAI gas engine which covers wide genset power range from 50KW to 2000KW.

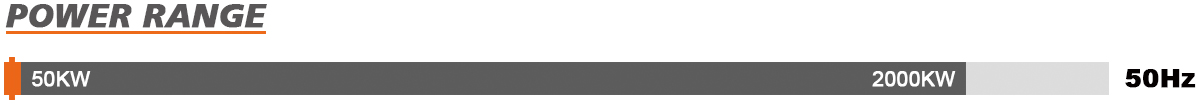

2-POWER RANGE

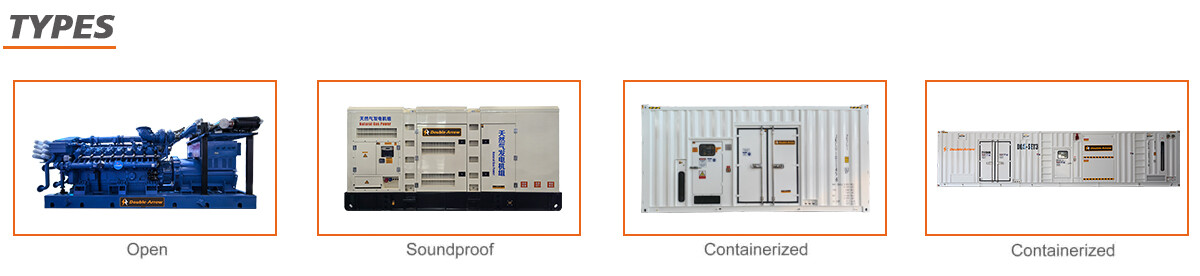

3-types
4-GENERAL FEATURE



Many advanced technologies integrated

● Highly efficient gas engine with stable and strong power

● Lean combustion technology with high air / fuel ratio

● Natural and forced ventilation integration technology



Intact configuration and control

●Touch-screen operation control system

● Electronic ignition control system based on microprocessor

● Exact speed control system for high stability of frequency

● Heat recovery through coolant and exhaust exchangers

● Integrated control cabinet with comprehensive monitor , control and protection



Paralleling functions

● Several units can run in paralleling mode for heavy - duty demand and automatically parallel or disconnect according to the changes of load

● Paralleling with mains can output power to mains , replace it or operate for peak shaving



Frequency conversion control technology for fans

● No need to start fans in low temperature

● Start several fans in medium temperature to both supply power and lower gas consumption



Advanced waste heat recovery system

● The power produced during the unit operation can meet the demand of users , at the same time a mass of heat in the jacket water and exhaust gas can be recovered through heat exchangers , heat recovery boilers and chillers to provide users heat and cooling

4-GENERAL FEATURE-1
5-INTELLIGENT CONTROL SYSTEM



Automatic operation system with touch screen

● 10- inch colored touch display screen for easy data reading

● Intact parameter monitor and control of fuel , engines and generators

● Monitor and control of pumps , valves and fans - Local or remote monitor and control

● Automatic oil refilling system for continuous unit running

● Extensible input and output control meeting the users ' localization demands



Paralleling and control cabinet

● Integrated paralleling and control cabinet as standard configuration with IP54 protection

● Internal integrated controller and electrical equipment

● Paralleling function with other units or mains and control and protection functions

● Easy paralleling with mains in peak shaving mode , output to mains mode or isolated mode



Automatic charging system

● Automatically check the voltage of the battery ensuring the voltage in the applicable range and the unit can start at any time

5-INTELLIGENT CONTROL SYSTEM-1
6-HIGH SAFETY SYSTEM



Products are fitted with many kinds of sensors and safety valves , integrating control , measurement and protection functions

Cylinder temperature protection system

● Cylinder temperature sensors or exhaust manifold temperature sensors can measure the combustion or exhaust gas temperature and send signals to the control system to monitor engine ' s operation condition and ensure normal operation



Detonation control system

● Based on the signals from sensors , the controller sends out analog signals to ignition system after processing so as to adjust ignition timing , reduce load or shutdown to avoid detonation



Gas leakage protection device

● This avoids gas leakage and once the gas leaks , gas pipeline will be turned off and alarms will be sent out



Air circuit breaker

● Well-known brand breaker is integrated into breaker cabinet with control and various protection functions against overload , short circuit , under voltage etc

6-HIGH SAFETY SYSTEM-1
7-HIGH DURABILITY AND RELIABILITY POWER BOX

● Coupling between engine and alternator dampens rotational vibrations and load surge , and limits torque to protect the actuator from overload



● Equipped filters separate dust , metal scraps , carbon deposit etc . efficiently and restrain abrasion of engine parts for example crankshaft to prolong the unit’s lifetime



● The container is manufactured as ISO standard container and accordant with shipping regulations and CSA certificate . Stainless steel bolts and locks are installed on the exterior of container for corrosion resistance and long life



● High quality steel monocoque base frame with reinforcement design is manufactured with advanced welding technology



● Bellows installed between exhaust manifold and silencer keeps exhaust assembly in flexible

connection , depresses vibration and noise and prolongs the service life of exhaust system



● The device can introduce lightning into the earth and protect personnel and equipment from lightning stroke



● Internal smoke status is detected in time and once excessive smoke is detected , the system would send out a warning to prevent fire spreading or explosion



● The shutters control inlet and outlet automatically , i . e . close shutters when CHP unit stops or open them when CHP unit starts , thus these achieve automatic adjustment and prevent small animals entering into the unit when it stops . Once gas leakage happens , they are closed automatically to isolate internal air and prevent explosion

7-HIGH DURABILITY AND RELIABILITY POWER BOX-1
