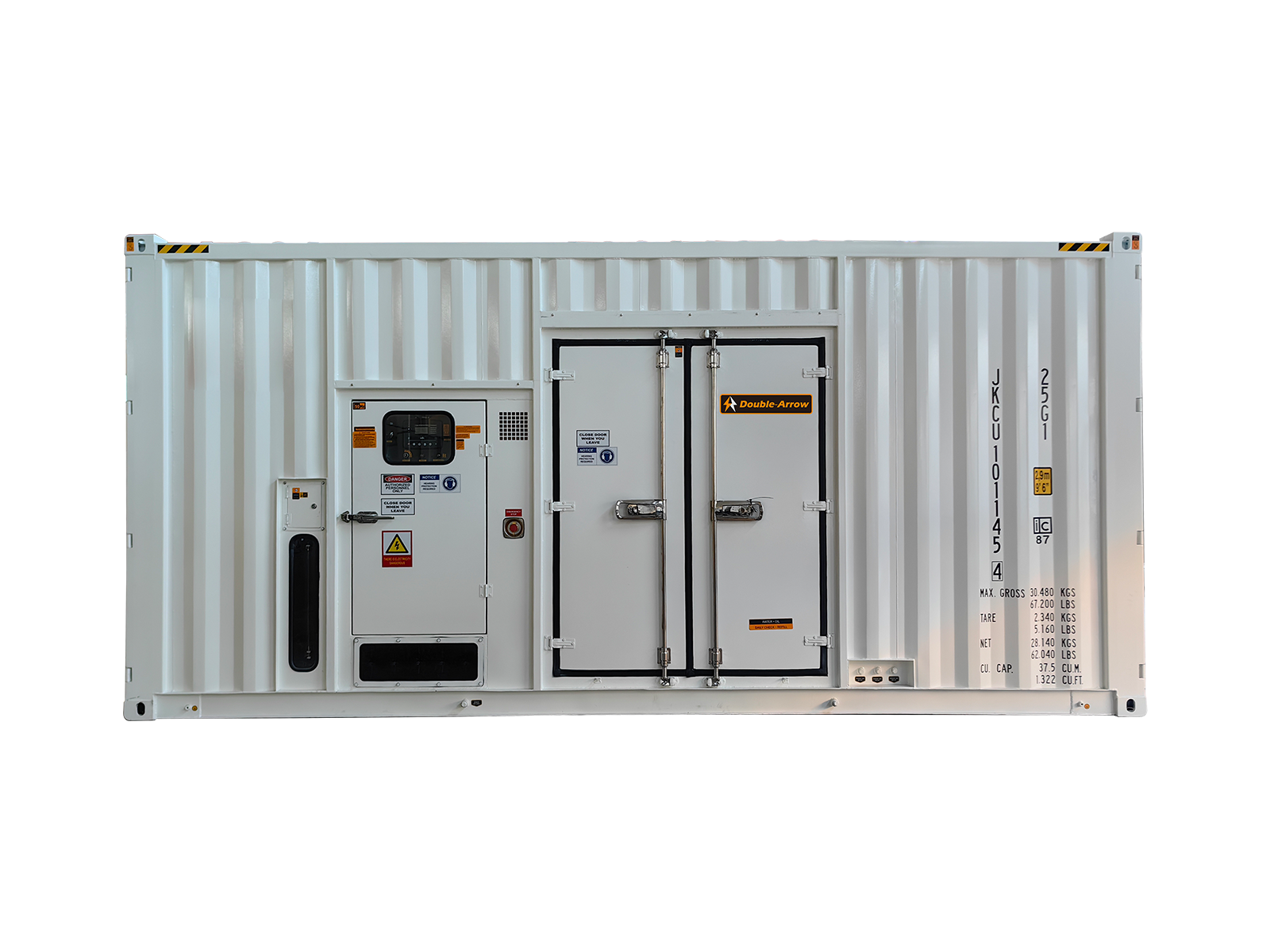

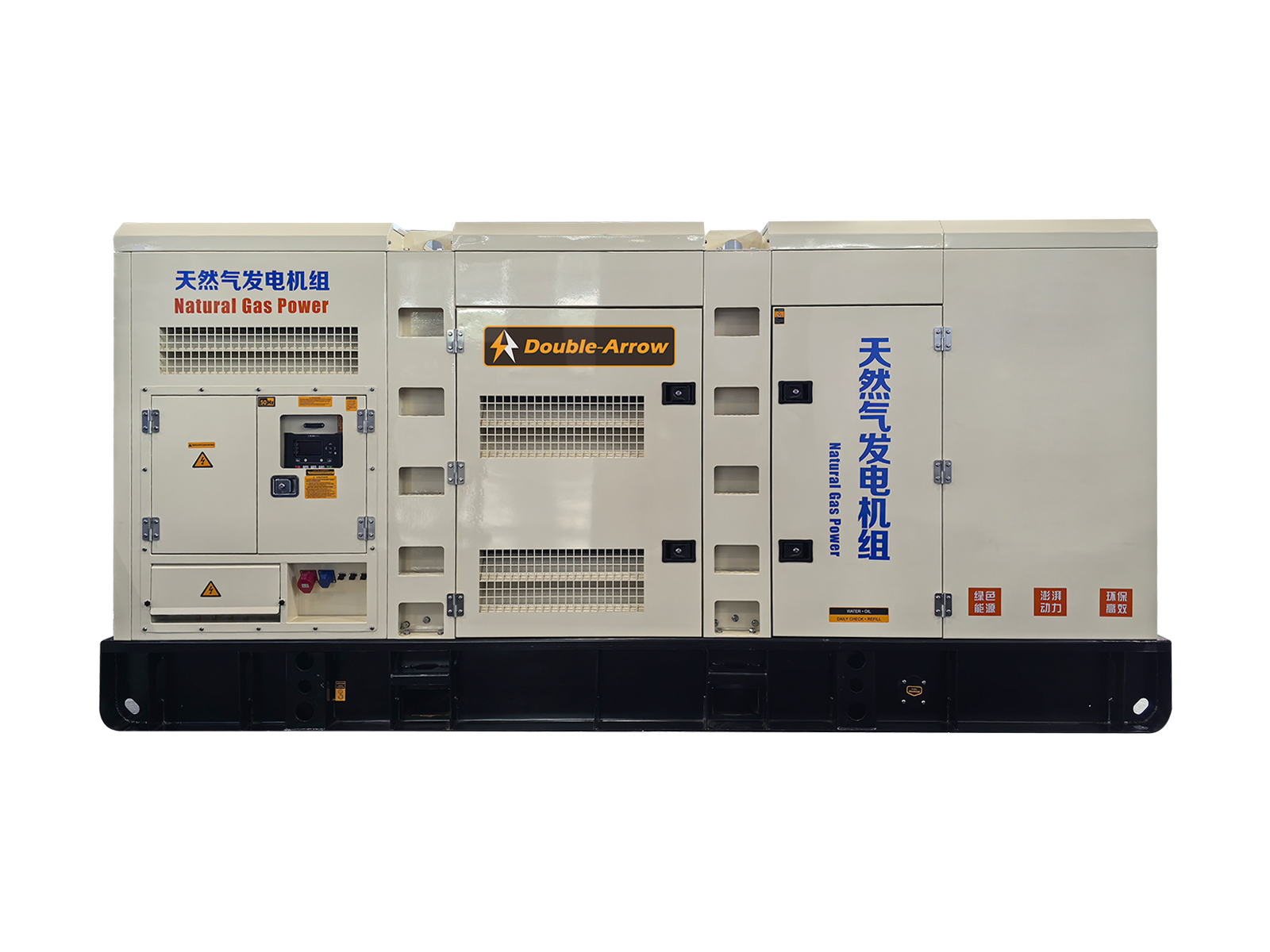

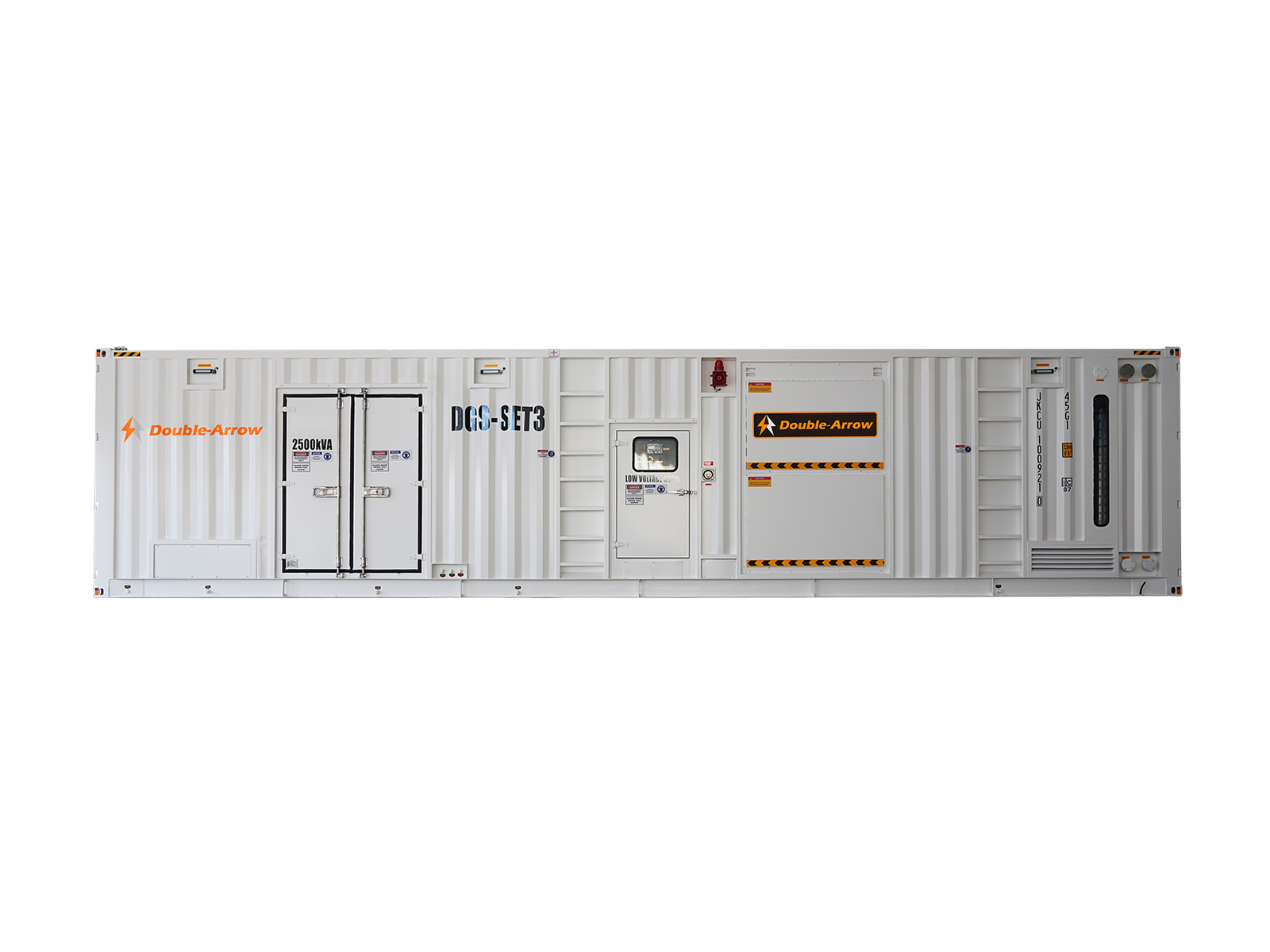

DA-YNG SERIES YUCHAI 50-2000KW

DA-YNG SERIES YUCHAI 50-2000KW

DOUBLE-ARROW DA-YNG series gas generator sets are selecting excellent YUCHAI gas engine which covers wide genset power range from 50KW to 2000KW.

Guangxi Yuchai Marine and Genset Power Co ., Ltd . is a wholly - owned subsidiary of Guangxi Yuchai Machinery Co ., Ltd . The company , headquartered in Yulin , Guangxi , is committed to R & D , production , sales , and customer service of marine engines , G - Drive engines as well as others . Its products , sold to markets worldwide including Asia , Africa , Latin America , the United States , and Europe as well as the domestic market , are widely used in marine and engineering equipment , power generation , oil drilling as well as other fields . the products have won high praise from new and old customers . The annual production capacity of the engine exceeds 50,000 units . The annual sales revenue exceeds RMB 5 billion.
CONTACT US
50HZ
Features
FAQ

DA-YNG Series -- Powered by YUCHAI Engine 丨 Three-phase 50Hz


Genset ModelContinuous PowerYUCHAIDatasheet
KWEngine model
DA-Y50NG50YC4D90N-D30PDF
DA-Y80NG80YC4G135N-D30PDF
DA-Y120NG120YC6G205N-D30PDF
DA-Y180NG180YC6MK315N-D30PDF
DA-Y250NG250YC6K420N-D30PDF
DA-Y450NG450YC6TF800N-D30PDF
DA-Y500NG500YC6C935N-D30PDF
DA-Y800NG800YC12VTD1350N-D30PDF
DA-Y1000NG1000YC12VC1680N-D31PDF
DA-Y1100NG1100YC16VTD1830N-D30PDF
DA-Y1500NG1500YC16VC2470N-D30PDF
DA-Y2000NG2000YC16VC3300N-D30PDF

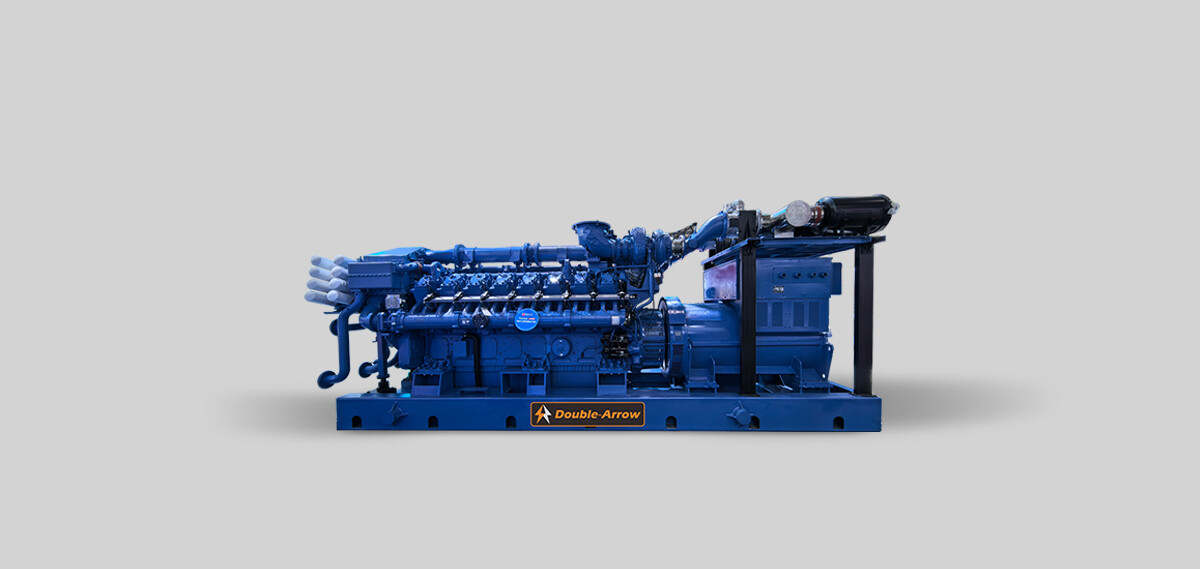

1-海报

DA-YNG SERIES YUCHAI 50-2000KW

DOUBLE-ARROW DA-YNG series gas generator sets are selecting excellent YUCHAI gas engine which covers wide genset power range from 50KW to 2000KW.

2-POWER RANGE

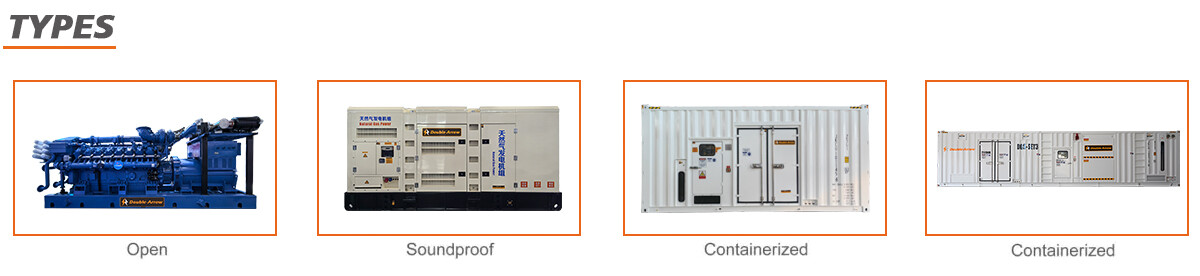

3-types

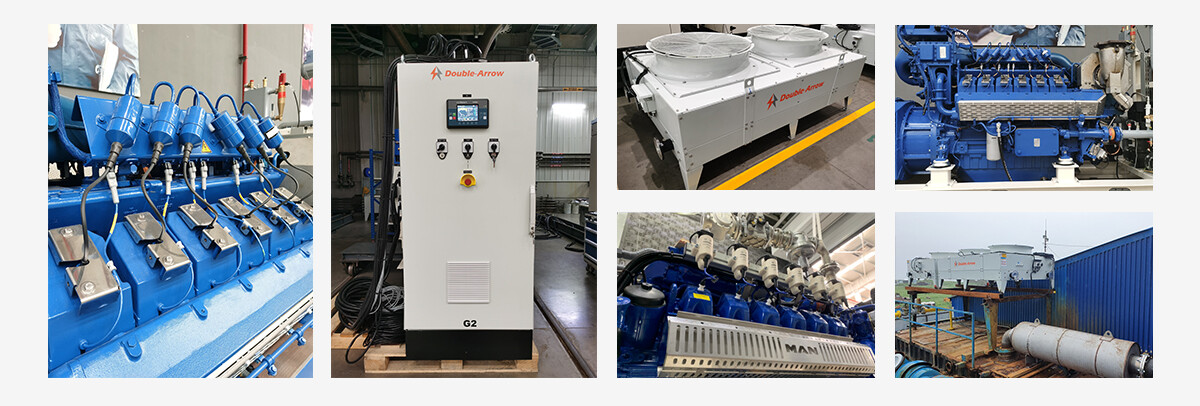

4-GENERAL FEATURE



Many advanced technologies integrated

Highly efficient gas engine with stable and strong power

Lean combustion technology with high air / fuel ratio

Natural and forced ventilation integration technology



Intact configuration and control

Touch-screen operation control system

Electronic ignition control system based on microprocessor

Exact speed control system for high stability of frequency

Heat recovery through coolant and exhaust exchangers

Integrated control cabinet with comprehensive monitor , control and protection



Paralleling functions

Several units can run in paralleling mode for heavy - duty demand and automatically parallel or disconnect according to the changes of load

Paralleling with mains can output power to mains , replace it or operate for peak shaving



Frequency conversion control technology for fans

No need to start fans in low temperature

Start several fans in medium temperature to both supply power and lower gas consumption



Advanced waste heat recovery system

The power produced during the unit operation can meet the demand of users , at the same time a mass of heat in the jacket water and exhaust gas can be recovered through heat exchangers , heat recovery boilers and chillers to provide users heat and cooling

4-GENERAL FEATURE-1

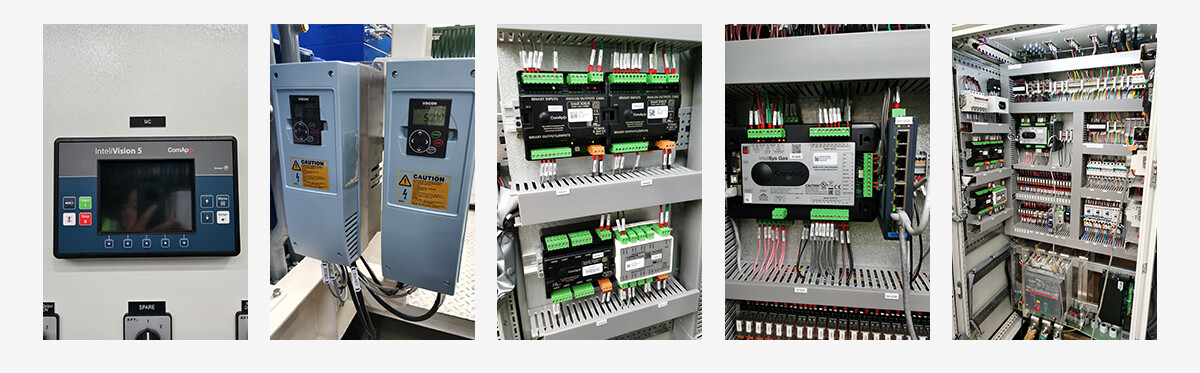

5-INTELLIGENT CONTROL SYSTEM



Automatic operation system with touch screen

10- inch colored touch display screen for easy data reading

Intact parameter monitor and control of fuel , engines and generators

Monitor and control of pumps , valves and fans - Local or remote monitor and control

Automatic oil refilling system for continuous unit running

Extensible input and output control meeting the users ' localization demands



Paralleling and control cabinet

Integrated paralleling and control cabinet as standard configuration with IP54 protection

Internal integrated controller and electrical equipment

Paralleling function with other units or mains and control and protection functions

Easy paralleling with mains in peak shaving mode , output to mains mode or isolated mode



Automatic charging system

Automatically check the voltage of the battery ensuring the voltage in the applicable range and the unit can start at any time

5-INTELLIGENT CONTROL SYSTEM-1

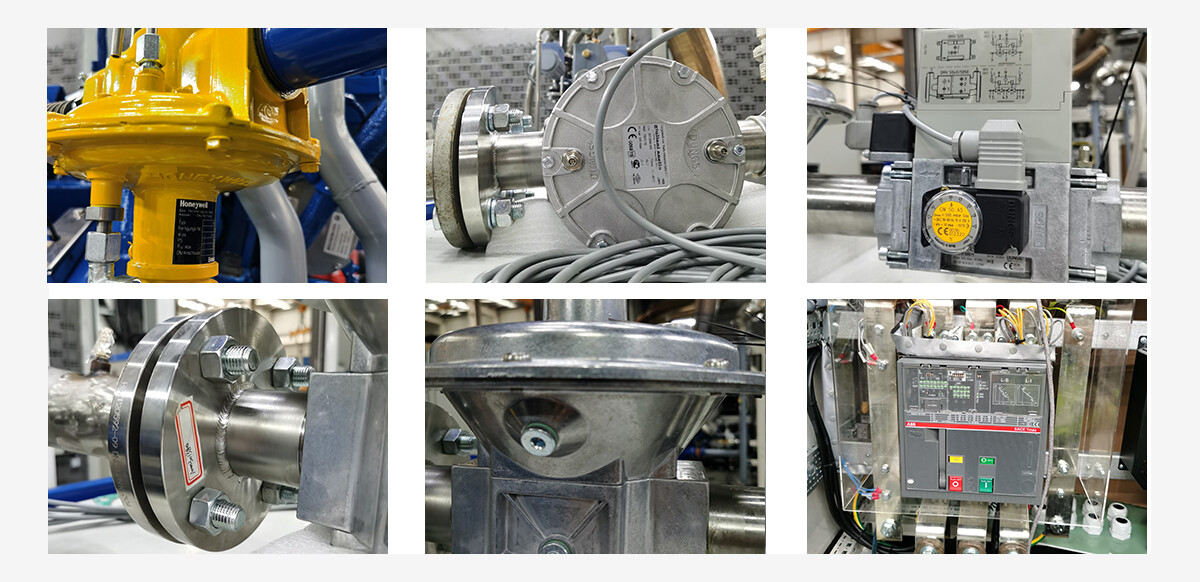

6-HIGH SAFETY SYSTEM



Products are fitted with many kinds of sensors and safety valves , integrating control , measurement and protection functions

Cylinder temperature protection system

Cylinder temperature sensors or exhaust manifold temperature sensors can measure the combustion or exhaust gas temperature and send signals to the control system to monitor engine ' s operation condition and ensure normal operation



Detonation control system

Based on the signals from sensors , the controller sends out analog signals to ignition system after processing so as to adjust ignition timing , reduce load or shutdown to avoid detonation



Gas leakage protection device

This avoids gas leakage and once the gas leaks , gas pipeline will be turned off and alarms will be sent out



Air circuit breaker

Well-known brand breaker is integrated into breaker cabinet with control and various protection functions against overload , short circuit , under voltage etc

6-HIGH SAFETY SYSTEM-1

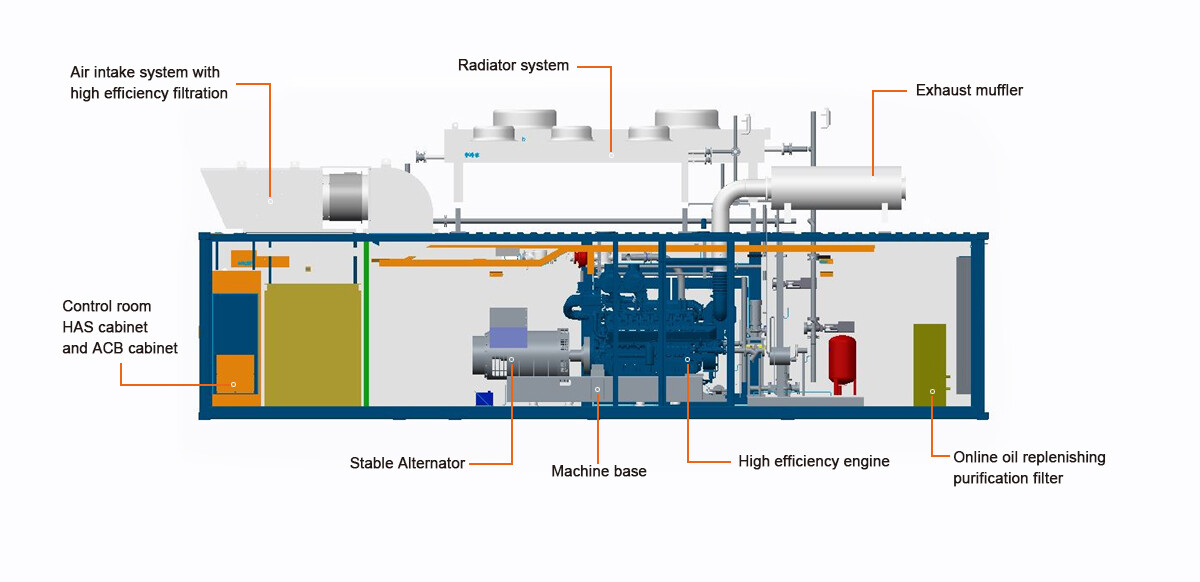

7-HIGH DURABILITY AND RELIABILITY POWER BOX

Coupling between engine and alternator dampens rotational vibrations and load surge , and limits torque to protect the actuator from overload



Equipped filters separate dust , metal scraps , carbon deposit etc . efficiently and restrain abrasion of engine parts for example crankshaft to prolong the unit’s lifetime



The container is manufactured as ISO standard container and accordant with shipping regulations and CSA certificate . Stainless steel bolts and locks are installed on the exterior of container for corrosion resistance and long life



High quality steel monocoque base frame with reinforcement design is manufactured with advanced welding technology



Bellows installed between exhaust manifold and silencer keeps exhaust assembly in flexible

connection , depresses vibration and noise and prolongs the service life of exhaust system



The device can introduce lightning into the earth and protect personnel and equipment from lightning stroke



Internal smoke status is detected in time and once excessive smoke is detected , the system would send out a warning to prevent fire spreading or explosion



The shutters control inlet and outlet automatically , i . e . close shutters when CHP unit stops or open them when CHP unit starts , thus these achieve automatic adjustment and prevent small animals entering into the unit when it stops . Once gas leakage happens , they are closed automatically to isolate internal air and prevent explosion

7-HIGH DURABILITY AND RELIABILITY POWER BOX-1
